Professional Installation required!
PLEASE READ EVERYTHING ON THIS PAGE AND THE PROVIDED PAPER INSTRUCTIONS BEFORE THE INSTALLATION.
************ DO NOT TURN THIS LIGHT ON OUT OF THE WATER! *************
All connections and Installation should be performed by a licensed electrician!
USE THE COMPONENTS THAT ARE PROVIDED WITH YOUR PURCHASE! OUR LIGHTS REQUIRE THE USE OF OUR CONTROLLER AND TRANSFORMERS ONLY!
INDIVIDUALLY CAP OFF ALL UNUSED CONNECTIONS FROM THE COMPONENTS INDIVIDUALLY
PLEASE REFER TO THE PAPER INSTRUCTIONS PROVIDED FOR ADDITIONAL INFORMATION ON CONNECTIONS, WE HAVE TWO CONTROLLERS AND YOU MAY HAVE THE UPDATED DESIGN, THE PAPER INSTRUCTIONS WILL STATE EXACTLY WHAT CONNECTIONS ARE TO BE MADE.
THE VIDEO IS INFORMATION PURPOSES AS WELL.
Mounting this controller inside a metal box will block the signal to the controller.
*****NOTE: The RGB bluetooth Controller (in the video)
The current video shows a different controller. The controller Red is positive, Black is negative
** If you want to learn how to connect the app to the controller ONLY, fast forward to the 3:50 mark of the video
** IF YOU WANT TO LEARN HOW TO "PLAY" YOUR LIGHT TO MUSIC, FAST FORWARD TO THE 5:54 MARK OF THE VIDEO BELOW

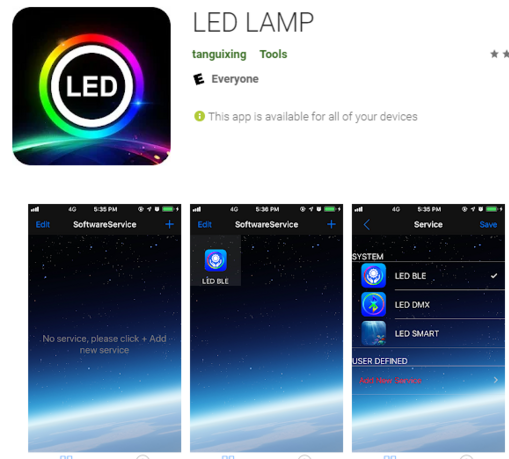

If you go to the APP store or GOOGLE PLAY, this is the APP Logo you are looking for, LED BLE, if you can't get the QR code on the right of the screen to load
This video below will explain how to control two or more lights separately, if you chose that option at purchase and have the applicable equipment to do so.
This diagram is ONLY for the above ground pool light and HYDRA.
This is NOT a diagram for the NOVA or BETA in ground pool LED

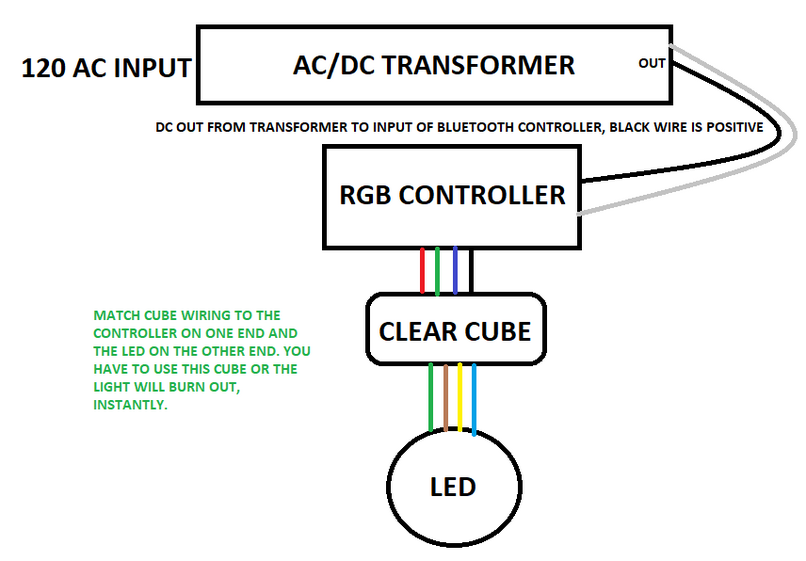

The diagram below is for the above ground pool light and the HYDRA LEDs
Using your cell phone, scan this QR code below with your phone camera, it will automatically ask you to download the app.
If you have an Android phone, choose option: "ANDROID A"
If you have an Apple phone, choose option:
"IOS/Android"
RED

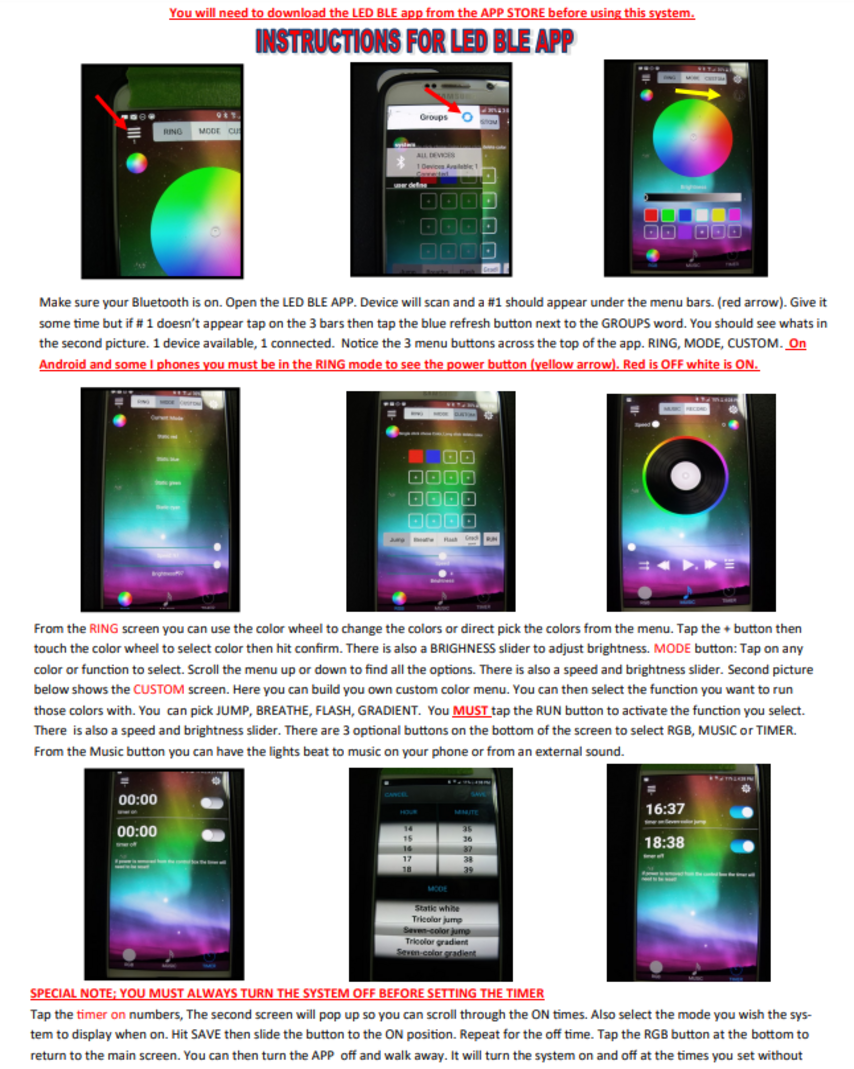

More advanced operation on this video for review
THIS IS THE ABOVE GROUND POOL LIGHT
Open the app and connect to your lights. The connection is made over BLE or Bluetooth Low-Energy. For most devices, you will NOT need to connect to the lights in the bluetooth settings. The app should work out-of-the-box without directly connecting in the bluetooth settings.
If the connection does not work on the first attempt, try forgetting the device, within your bluetooth settings, switch off the power to the pool light for 10 seconds, then back on, then open the app again. If it still doesn't connect, uninstall the app then reinstall it. Once you get this set up, you won't have to worry about it connecting, it will connect automatically when you're around the pool and your bluetooth is turned on, on your phone.
When removing your old light, use a strong nylon string or "pull tape" (home depot) and attach securely to your old wiring. Pull the old wire out and use the string or pull tape to pull the new wire through. YOU HAVE TO USE OUR NEW WIRING!
When pulling the new wiring through, use "wire lube" (home depot) for ease of install. It does NOT take significant effort to pull the new wiring through, its almost certainly, smaller than the old wire you pulled out. If the new wire gets in a "bind" pull it back and use more wire lube.
The wire provided is fairly strong and has nylon inside it, HOWEVER, its not indestructible!
You can also use this app if you are having trouble with LED BLE app
If the QR code is giving you problems, we address that on this site, keep scrolling, keep reading, please
This light is NOT Alternating Current (A/C)! You have to use the transformer we provided you with, that converts A/C to D/C (Direct Current).
The controller is 12 volts DC, the light is 12 volts DC.
REFER TO PAPER INSTRUCTIONS AS WELL.
IF you are still having problems connecting to the app, read this:
1) Turn off bluetooth on your device
2) Turn off power to the lights and controller
3) Turn ON power to the lights and controller
4) Open the app. It will ask you if it can turn on bluetooth. Allow it to do so and it will connect.
It also asks for permission to record audio because it DOES have a feature to strobe the lights to music, EVEN IF, you don't have music downloaded on your phone, like previous videos explain.
